Chasmood plastic tracks are extruded to close tolerances using high grade plastic.
They are intended for use in applications where price is important without sacrificing quality and durability. e.g. for sliding systems, ‘trade guides’ and supermarket
No.1 Track for grooving in
No.3 Track for surface fixing
No1 Sliders
No.1 Track for grooving in
No.3 Track for surface fixing
No1 Sliders
| Specification | No.1 | No.2 | No.3 | No.4 | No.1A Coil |
|---|---|---|---|---|---|
| Overall Height | 12.7 | 15.8 | 6.3 | 7.9 | 12.7 |
| Overall Width | 3.9 | 4.7 | 11.1 | 11.1 | 4.7 |
| Stock Length | 2 Metres | 2 Metres | 2 Metres | 2 Metres | 30 Metres |
| Groove Depth | 7.9 | 9.5 | - | - | 5.5 |
| Colours | Black | Black | Black | Black | Black White Brown |

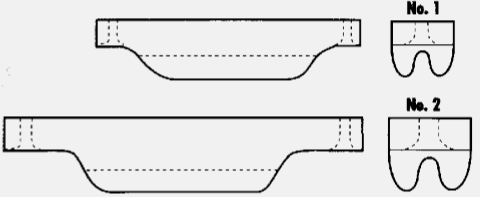

Use with No.1 and No.3 tracks
Use with No.2 and No.4 tracks
| Spec | No.1 | No.2 |
|---|---|---|
| Height | 10 | 12 |
| Width | 9 | 12 |
| Length | 46 | 60 |
| Colour | White | White |
| Load Capacity Kgs. | Per Door 7 |
Per Door 12 |
Quality Fittings for sliding cabinet doors, wardrobes, safety screens, partitions, display and notice boards etc.
No 86 Roller is bottom mortise fixing.
No 1450 Roller is back mortise fixing.
| Spec | No.86 | No.1450 |
|---|---|---|
| Height | 28 | 30 |
| Width | 11 | 11.7 |
| Length | 52 | 50 |
| Mortise | 18.2 | 9.5 |
| Type | Ball Bearing | Ball Bearing |
| Colour | Brown | Brown |
| Wheel | 6 | 6 |
| Load Capacity | 20 Kgs. Per wheel | 20Kgs. Per wheel |

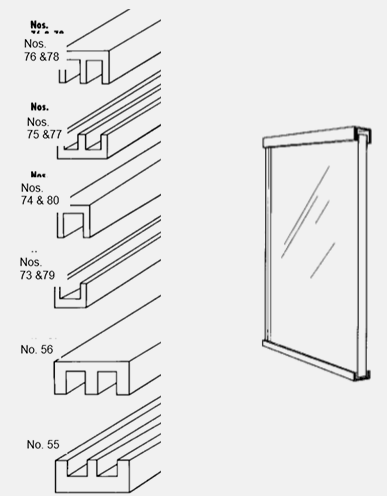

High quality PVC for long life and smooth action. Can easily be joined with a clean butt joint, thus minimising wastage.
Stock lengths are 2 metres.
Available in Black. Other colours to order
| Type | Overall Height | Overall Width | Groove Width | Groove Depth | |
|---|---|---|---|---|---|
| For 4.7mm Glass | No.77 Double | 9.5 | 16.67 | 5.56 | 6.35 |
| No.78 Double | 12.7 | 16.67 | 5.56 | 9.5 | |
| For 6.35mm Glass | No.73 Single | 9.5 | 10.32 | 7.14 | 6.35 |
| No.74 Single | 12.7 | 10.32 | 7.14 | 9.5 | |
| No.75 Double | 9.5 | 19.84 | 7.14 | 6.35 | |
| No.76 Double | 12.7 | 19.84 | 7.14 | 9.5 | |
| No.55 Double | 12.7 | 25.4 | 7.14 | 9.5 | |
| No.56 Double | 12.7 | 25.4 | 7.14 | 6.35 | |
| For 9.5mm Glass | No.79 Single | 9.5 | 15.8 | 11.11 | 6.35 |
| No.80 Single | 14.2 | 15.8 | 11.11 | 11.11 |
Rolla-Kosta Sliding system provides quiet running and a long life.
Ideal for MDF, MFC, Blockboard and Solid Wood Doors.
A matching Top Channel and retractable top guide makes the whole system quick and easy to install.
Finished in Lava Brown to blend with veneers.
The No.86 Bottom Track is steel bonderised and epoxy coated to resist rust. Wheel units with steel ball bearings for free running encased in a glass reinforced nylon tyre for strength and effortless movement.
For doors up to 20mm thick use the No,1450 roller with either No,42 or No.43 Guide.
For doors over 20mm thick use the No.86 roller with either No,44 or No.45 Guide.
Use No.800 top track with No.43 & No.45 Guides
Use No.74 top track with No.42 & No.44 Top
Retractable Top Guides have spring loaded push button pins enabling doors to be removed instantly for cleaning, decorating or easy access.
A choice of back or end fixing.
Available in Zinc galvanised finish.
| Overall Height | Overall Width | Fixing | Dia of Pin | Height of Pin | |
|---|---|---|---|---|---|
| No.42 | 57 | 35 | Black Mortise | 6 | 10 |
| No.43 | 57 | 35 | Black Mortise | 8 | 10 |
| No.44 | 57 | 13 | End Mortise | 6 | 10 |
| No.45 | 57 | 13 | End Mortise | 8 | 10 |
A range of flexible P.V.C. T-edgings designed to give a colourful and protective edge to most popular sizes of board.
Easily fitted to pre-routed grooves.
Tongues are approximately 3.5 mm thick and 8 mm deep.
Wide range of colours to suit your project.
Black
White
Grey
Blue
Green
Yellow
Red
Brown
Beige
50 Metre Coils
Angles are ideal to protect exposed corners from unsightly knocks, chips and scratches.
Heavy enough for structural applications.
A fast , cost effective way to provide a neat protective edge.
Extruded to close tolerances in rigid P.V.C. using high grade materials.
This range has many potential uses.
Black
White
3 Metres
Originally designed as a drawer slide this rigid, single P.V.C. channel is also suited to many applications including sliding doors and shelf edging.
White
2.44 Metres
